Machines Park

Top of the line Machining Centers from World known manufacturer Deckel Maho (DMG) Germany, in 3 Axis,4 Axis & simultaneous 5 Axis.

DECKEL MAHO  DMC 64 V linear

Table Size : 850 x 630mm Table load (mounting    weight)  600 Kg

Working area : X- axis WITH LINEAR DRIVE   640mm, Y- axis 600mm, Z- axis 500mm

Rapid Feed rates : X = 70 m/min  /  Y & Z  =  40 m/min

Direct Measuring system  - 0.001mm



Working spindle : Speed range  1 - 12,000 rpm



Tool magazine /changer (ATC) : Number of tools = 30



Control system : 3D CNC Control HEIDENHAIN iTNC 530 &

                       15”- TFT-Flatscreen  Monitor

DECKEL MAHO  DMC 1035 V



Table Size : 1200 x 600mm Table load (mounting   weight) 1000Kg



Working area : X- axis 1035mm, Y- axis 550mm, Z-   axis  500mm



Rapid Feed rates : X = 40 m/min  /  Y & Z  =  40 m/min

Direct Measuring system  - 0.001mm



Working spindle : Speed range  1 - 12,000 rpm



Tool magazine /changer (ATC) : Number of tools = 20



Control system : 3D CNC Control HEIDENHAIN iTNC 530 & 15”- TFT-Flatscreen  Monitor

DECKEL MAHO  DMF 180 – 5 Axes

Table Size : 2100 x 700mm Table load   (mounting weight)  1500 Kg

Working area : X- axis 1800mm, Y- axis    700mm, Z- axis 700mm

Rapid Feed rates : X = 40 m/min  /  Y & Z  =  40   m/min

Direct Measuring system  - 0.001mm

Working spindle : Speed range  1 - 18,000 rpm

Integrated Rotary Table Dia – 750 mm , Load = 500 Kg.



B Axis swivel Head = +/- 100 degree.

Tool magazine /changer (ATC) : Number of tools = 60

Control system : 3D CNC Control HEIDENHAIN iTNC 530 & 19”- TFT-Flatscreen  Monitor

DECKEL MAHO  DMC 1150V



Table Size : 1400 x 750mm Table load (mounting weight) 1200Kg



Working area : X- axis 1150mm, Y- axis 700mm, Z-axis  550mm



Rapid Feed rates : X = 40 m/min  /  Y & Z  =  40 m/min



Direct Measuring system  - 0.001mm



Working spindle : Speed range  1 - 18,000 rpm



Tool magazine /changer (ATC) : Number of tools = 20



Control system : 3D CNC Control SIEMENS ERGO line

HAAS VF2



Table Size : 750 x 500mm Table load (mounting weight) 700Kg



Working area : X- axis 750mm, Y- axis 500mm, Z-axis  410mm



Rapid Feed rates : X = 30 m/min  /  Y & Z  =  30 m/min



Working spindle : Speed range  1 - 10,000 rpm



Tool magazine /changer (ATC) : Number of tools = 20

 DMG Tool Pre-setter

Haimer Power Clamp – Shrink Fit For Tools

DESIGN - CAD / CAM

We have high end CAD & CAM software for design purposes – DELCAM and MASTERCAM. Our  team of 5 Engineers is expert in generating NC programmes which are further checked with Machine Simulation.

CAD/ CAM system is equipped with NC programme generating  Modules for BLISK  & IMPELLER.

CAD/ CAM system also uses Modules for direct translators for :CATIA, PRO-E, IDEAS, UNIGRAPHICS

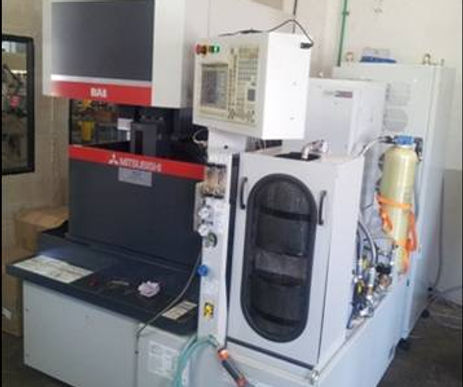

WIRE EDM MACHINE – MITSUBISHI MODEL – BA 8



• Workpiece Dimension – 700 x 550 x 215 mm



• Maximum Workpiece weight – 500 Kg.



• Machining Travel -  320 x 250 x 220 mm

Type of Materials we process - machining

• Ferrous Alloys - All type of Machinable Grades of  Steel in soft & hardened state.

• Different Types of Stainless Steel

• Alloys of Titanium

• Alloys of Aluminum / Magnesium
